Art-Fonks Knee Arthroscopy-Lift Systems, Screws, Staples and Wires

Femoral Lift Systems, Interference Screws, U-Staples and Wires, which we offer under the Art-Fonks brand, are manufactured using raw materials with proven biocompatibility, taking into account the highest production standards. Our products, which are designed to be easily and safely applied by surgeons, are produced under the most meticulous conditions and double sterilised in order for patients to regain their health in a short time.

Product Documents

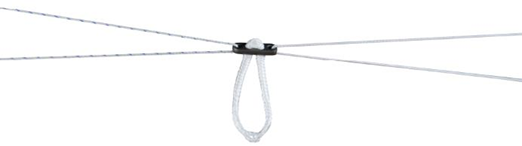

Art-Fonks Femoral Lift System with Button

Art-Fonks Femoral Lift System with Button is indicated for fixation of soft tissue to bone in ACL Repair Surgery

Art-Fonks Femoral Lift System with Button offers excellent tensile strength and fixation strength with its woven ring and tensile sutures using UHMWPE.

Each loop of the Art-Fonks Femoral Lift System with Button has 10 different lengths for different clinical needs. The Art-Fonks Femoral Lift System with Button offers surgeons a wide range of intra-operative options with lengths from 15-60mm in 5 millimetre increments.

The button of the Art-Fonks Femoral Lift System with Button is manufactured from Ti-6AI-4V ELI Titanium Alloy with proven biocompatibility.

Key Features and Benefits

High strength thanks to Ultra High Molecular Weight Polyethylene (UHMWPE)
Non-absorbable, White and Blue/White coloured suture combinations
Biocompatible Ti-6AI-4V ELI button
10 different lengths for different clinical needs
Superior tensile strength and fixing strength

Dimensions
Loop Length - 15mm
Loop Length - 20mm
Loop Length - 25mm
Loop Length - 30mm
Loop Length - 35mm
Loop Length - 40mm
Loop Length - 45mm
Loop Length - 50mm
Loop Length - 55mm
Loop Length - 60mm

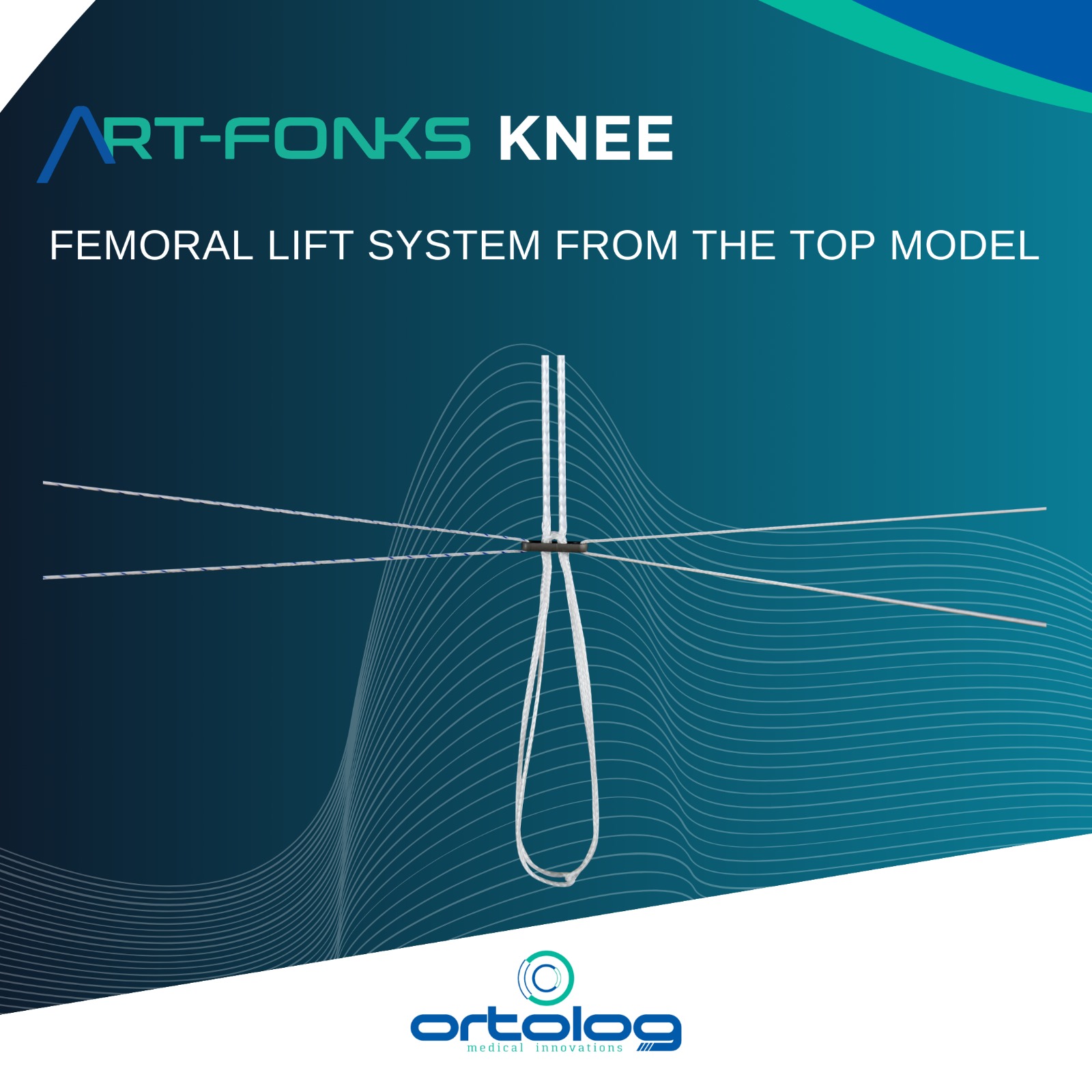

Art-Fonks Femoral Lift System with Pull Mechanism

Art-Fonks Femoral Lift System with Pull Mechanism adapts to graft fixation for different bone tunnel lengths, creating full graft-bone contact in the femoral tunnel for better healing.

The adjustable and knotless UHMWPE Art-Fonks Femoral Lift System with Pull Mechanism provides cortical fixation for cruciate ligament reconstruction surgeries.

Art-Fonks Femoral Lift System with Pull Mechanism is designed to be used for graft filling of femoral tunnels without the need for multiple implants for fixation of ACL and PCL grafts.

Art-Fonks Femoral Lift System with Pull Mechanism's preloaded rotation suture makes it easier to visualise the success of the rotation arthroscopically.

Art-Fonks Femoral Lift System with Pull Mechanism is available in top and bottom pull options.

Key Features and Benefits

High strength thanks to Ultra High Molecular Weight Polyethylene (UHMWPE)
Non-absorbable, White and Blue/White coloured suture combinations
Biocompatible Ti-6AI-4V ELI button
Bottom and top pull options
Innovative application for ACL Reconstruction with reliable fixation and significant clinical outcome

Options
Bottom Pull
Bottom Pull, Single Suture Model
Top Pull

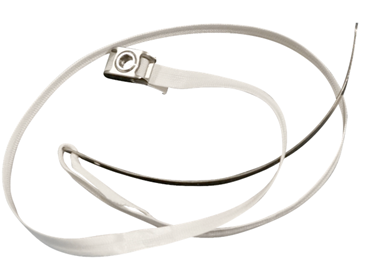

Art-Fonks Double Button Lift System

Art-Fonks Double Button Lift System are products that can be adjusted to the desired extent for the fixation of Acromio-Clavicular joint dislocations and Syndesmosis joint dislocations.

Art-Fonks Double Button Lift System- AC Lift System restores the anatomy of the shoulder and especially the Acromio-Clavicular joint in case of acute, chronic dislocation and even fracture of the distal fourth part of the clavicle. It is applied by passing through a canal opened with a suitable drill bit and by pulling the sutures, the acromion and clavicle return to their original position and the dislocation is reduced.

Art-Fonks Double Button Lift System- The Syndesmosis Lift System is applied through a channel drilled with a suitable drill bit from the fibula to the tibia through the plate or without the plate and helps to restore the Syndesmosis separation in a controlled manner.

Circular and longitudinal buttons provide compression between both fibula/tibia and clavicle/coracoid bones.

Key Features and Benefits

High strength thanks to Ultra High Molecular Weight Polyethylene (UHMWPE)
Non-absorbable, White and Blue/White coloured suture combinations
Biocompatible Ti-6AI-4V ELI buttons

Options
Double Button Lift System - AC Lift System
Double Button Lift System - Syndesmosis Lift System

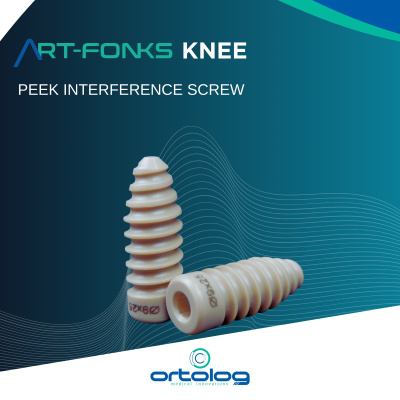

Art-Fonks PEEK Interference Screw

Art-Fonks PEEK Interference Screw is a self-tapping screw designed for faster and more effective placement.

Art-Fonks PEEK Interference Screw is indicated for fixation of a complete soft tissue graft such as quadriceps tendon as well as fixation of a bone-tendon-bone graft, ACL and PCL tear.

Art-Fonks PEEK Interference Screw with round-edged atraumatic thread design reduces the shearing effect on the tendon.

Art-Fonks PEEK Interference Screw is easy to screw in and has a higher holding force due to its bullet core structure

The extended Hex Screwdriver bit fits snugly against the screw, which increases screw torque and reduces the risk of breakage.

Key Features and Benefits

Designed for fast and efficient insertion
Non-absorbable, radiolucent and MRI artefact-free PEEK-OPTIMA material
A variety of screws in 6 different diameters and 3 different lengths for intra-operative flexibility
Special design for knee and ankle ligamentoplasty surgical techniques

Dimensions
Ø 7mm - Length 25 / 28 / 30mm
Ø 8mm - Length 25 / 28 / 30mm
Ø 9mm - Length 25 / 28 / 30mm
Ø 10mm - Length 25 / 28 / 30mm
Ø 11mm - Length 25 / 28 / 30mm
Ø 12mm - Length 25 / 28 / 30mm

Art-Fonks Titanium Interference Screw

Art-Fonks Titanium Interference Screw is a self-tapping screw designed for faster and more effective placement.

Art-Fonks Titanium Interference Screw is indicated for fixation of a complete soft tissue graft such as quadriceps tendon, as well as fixation of a bone-tendon-bone graft, ACL and PCL tear.

Art-Fonks Titanium Interference Screw with round-edged atraumatic thread design reduces the shearing effect on the tendon.

Art-Fonks Titanium Interference Screw is easy to screw in and has a higher holding force due to its bullet core structure

The extended Hex Screwdriver bit fits snugly against the screw, which increases screw torque and reduces the risk of breakage.

Key Features and Benefits

Designed for fast and efficient insertion
Strength and stiffness required for successful ligament reconstruction
Fully grooved design, optimal fixation for both soft tissue and BTB grafts
Rounded atraumatic groove to protect tissue grafts
Superior durability and biocompatibility thanks to Ti-6AI-4V ELI titanium alloy
A variety of screws in 6 different diameters and 3 different lengths for intra-operative flexibility
Special design for knee and ankle ligamentoplasty surgical techniques

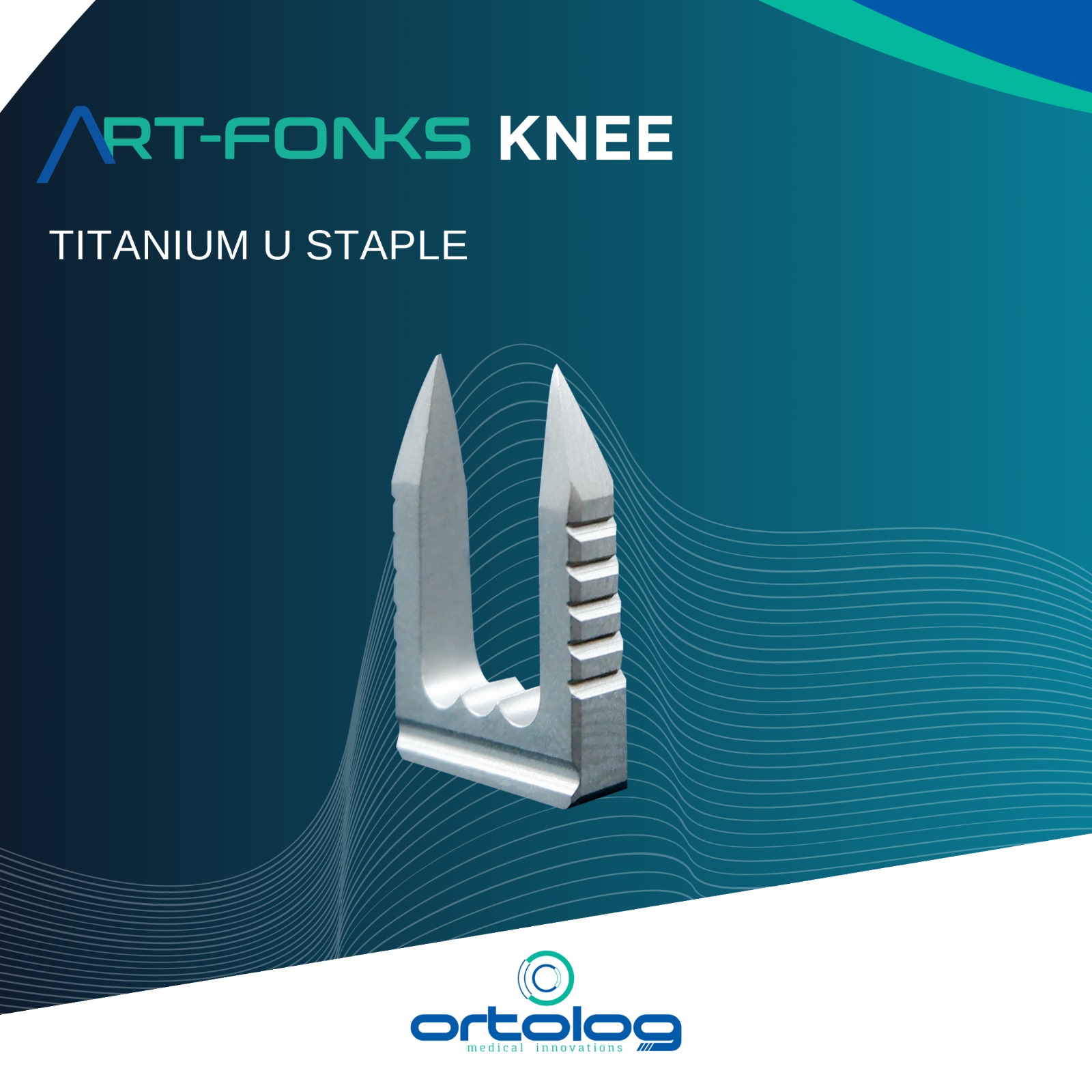

Art-Fonks Titanium U-Staple

Art-Fonks Titanium U-Staple is used for fixation of soft tissue to bone in ACL and PCL reconstruction. It is also an option for fixation of the medial and lateral ligaments.

The wide staple base of the Art-Fonks Titanium U-Staple provides better load distribution during hammering.

The pointed channel design of the Art-Fonks Titanium U-Staple allows uninterrupted vascular flow to the underlying tissue. The tapered legs allow for easier driving into cortical bone without the need for pre-drilling.

The reverse stepped side design prevents the Art-Fonks Titanium U-Staple from easily backing out.

Manufactured from Ti-6AI-4V ELI Titanium Alloy with proven biocompatibility.

Dimensions
Leg Length - 8mm
Leg Length - 10mm
Leg Length - 11mm
Leg Length - 14mm

Art-Fonks Titanium Button / Jumbo Button

Art-Fonks Titanium Button is designed for ACL and PCL reconstruction

Art-Fonks Jumbo Button is mainly used for revision and reconstruction of the cruciate ligament after surgery.

Art-Fonks Jumbo Button can be fitted over the Art-Fonks Titanium Button when it is necessary to enlarge the button contact area for cortical fixation in revision surgeries.

The oversized design of the Art-Fonks Jumbo Button increases the contact range between the cortical bone and the Titanium Button.

Manufactured from Ti-6AI-4V ELI Titanium Alloy with proven biocompatibility.

Dimensions
Titanium Button
Button without Loop

Art-Fonks Nitinol Guide Wire

Art-Fonks Nitinol Guide Wire is an auxiliary product designed to ensure correct placement of Art-Fonks Interference Screws in the tunnel angle.

The use of Art-Fonks Nitinol Guide Wire is mandatory for the placement and fixation of Art-Fonks Interference Screws in the correct position for strong fixation of the BTB graft in the tunnel.

Thanks to Nitinol, which is a memory metal, Art-Fonks Interference Screws can be placed safely without any orientation that will disrupt the screw direction during flexing in the tunnel.

Dimensions
0.8mm – 350mm
1.0mm – 350mm
1.4mm – 350mm

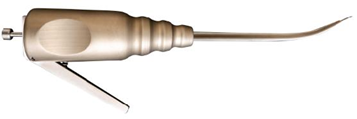

Art-Fonks Micro Fracture Wire

Art-Fonks Micro Fracture Wire is a medical device designed to be applied only to the relevant area according to the micro fracture creation technique to accelerate healing in defective areas in the articular cartilage.

The tip part of the Art-Fonks Micro Fracture Wire is made of super elastic Nitinol. Shaft and hammering block at the back is stainless steel.

Together with its ergonomic handle, the 1mm diameter Art-Fonks Micro Fracture Wire creates an optimal level of fracture on the cartilage surface.
